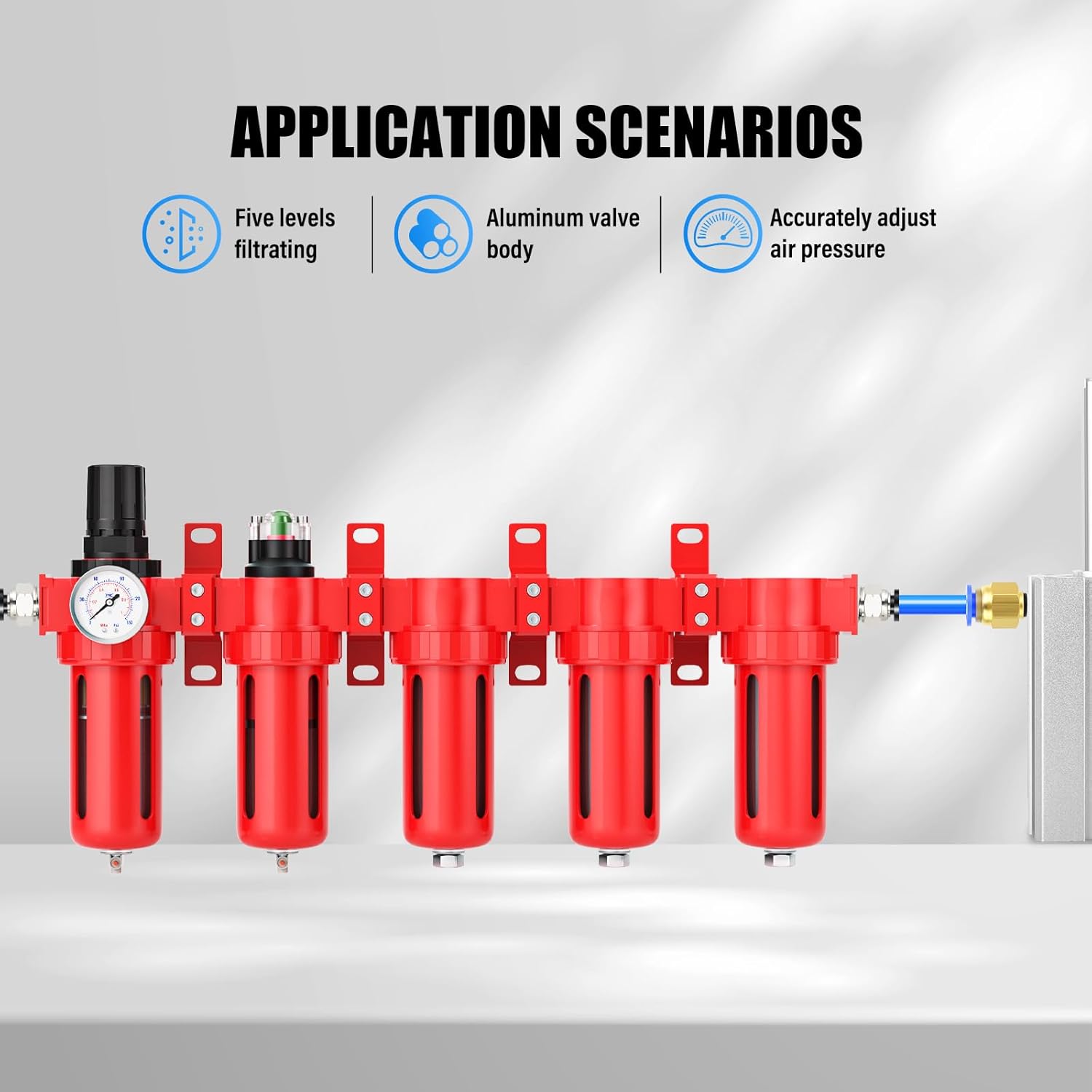

1/4" NPT Industrial Grade 5 Stage Aluminum Air Drying System, Coalescing Filter, Particulate Filter, Triple Desiccant Dryer and Air Regulator, Manual Drain For Plasma Cutter and Paint Spray

★Product Feature:✔The valve body is tightly sealed and easy to install.✔Aluminum valve body: high strength, corrosion resistance.✔Accurate pressure regulation, clear display.✔Ensure the dry gas, effectively extend the life of the air tool.★Product Specification:Pressure Range: 0-150 Psi.Material: High Quality AluminumDrainage Method: Manual DrainSize: Two port of 1/4" NPT inlet and outlet, and one 1/8" NPT port for pressure gauge.Design Concept: Five-stage filtration system that combines regulation and filtering to prevent dust and moisture from damaging pneumatic tools and accessories.★Package Included:1* Five Stage Air Drying System1* Dial Gauge for the 1/8"1* Valve Shut Off Switch1* Nickel-plated Iron Air Plug1* Nickel-plated Iron Air Coupler2* 1/4" x 1/4" Male Pipe2* 5 Micron Element (One of them is installed in the product)2* 0.5 Micron Element (One of them is installed in the product) 12* Desiccant Beads Bag1* Teflon tape

• 【Port Size】The five-stage air filter has three ports, two holes of 1/4" NPT and one Gauge Port 1/8" NPT. Capable of smooth operation in the range of 0-150PSI with manual drain.
• 【Stage 1-Regulator/Filter】The knob has a locking function that prevents it from being turned when pressed, ensuring accuracy and safety during use. The filter is fitted with a 5 micron cartridge which effectively filters out 95% of particles and water from the air.
• 【Stage 2-Coalescing Filter】It is equipped with a 0.5 micron filter that effectively removes up to 99.98% of water and impurities. There is a visual window at the top which automatically pops up a red indicator when the filter needs changing.
• 【Stage 3. 4 & 5-Triple Desiccant Air Dryer】They are metal bowl filled with desiccant beads which will absorb the last of the moisture and impurities in the air. When the desiccant beads in the metal bowl turn from blue to pink, this indicates that the desiccant beads need to be replaced.
• 【Package Included】1* Five Stage Air Drying System, 1* Dial Gauge for the 1/8", 1* Valve Shut Off Switch, 1* Nickel-plated Iron Air Plug, 1* Nickel-plated Iron Air Coupler, 2* 1/4" x 1/4" Male Pipe, 2* 5 Micron Element (One of them is installed in the product), 2* 0.5 Micron Element (One of them is installed in the product), 12* Desiccant Beads Bag, 1* Teflon tape.
