CNC Mini T-Type Sliding Table 50mm 100mm 250mm 300mm Motorized Linear Rail Platform Nema11 Motor Drive Kit Linear Stage XYZ Axis

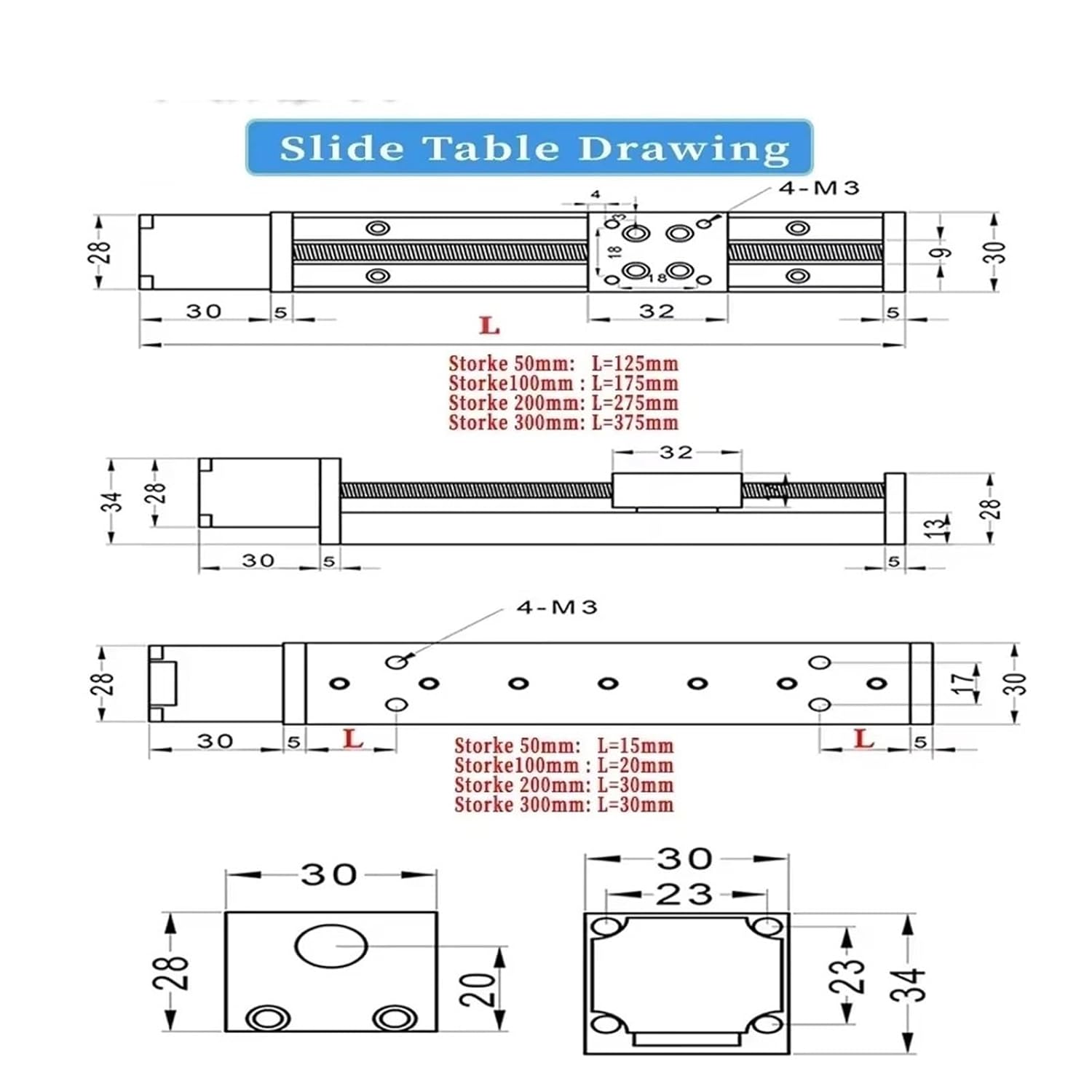

1* Sliding Table1* Nema 11 Open-loop Stepper Motor1* Drive (If you choose Drive)Sliding TableSpecifications:Model: T06Slide type:Trapezoidal screw slide tableHorizontal load:5KG (Max)Vertical load:2.5KG (Max)Effective stroke:50-300mmTotal Length:Effective Stroke+75mmMobile panel size:30mm*32mmRepeat positioning accuracy:0.02mm-0.03mmMaximum speed:80mm/sRail width:6MMBlock:MGN9HScrew Precision:C7Pitch:1mm/2mm/4mm/6mm/12mm (If the pitch your choose is 2mm, it means that the motor rotates once and the moving panel moves 2mm.)PS:We support customized connecting plates for multi-axis systems.Stepper Motor Specifications :Model: 28HB30-401A (Support customized 28HB40-401A motor)Motor Flange Size:NEMA 11(28MM)Holding torque:0.07N.mBody length:30mmShaft diameter:5mmType:Hybrid MotorPhase:2PhaseCurrent :0.6AStep angle:1.8degreeDrive Specifications:Model:TB6600Model Number : T06Guide Width or Diameter : 12mmOrigin : Mainland ChinaCertification : CEScrew Model : Trapezoidal screw (T6)Horizontal load : 5KG (Max)Vertical load : 2.5KG(Max)Screw Pitch : 1mm/2mm/4mm/6mm/12mmMotor Size : NEMA11(28MM)Holding torque : 6.5Ncm/0.065N.mMobile panel size : 30mm X 32mmRepeat positioning accuracy : 0.02mm-0.03mmMaximum speed : 80mm/sRail width : 9MMBlock : MGN9HStroke : 50mm/100mm/150mm/200mm/250mm/300mmProduct type 1 : linear actuator tableProduct type 2 : linear stageProduct type 3 : sliding tableProduct type 4 : stepper linear guide tableProduct type 5 : Mini slide tableProduct type 6 : Mini sliding tableProduct type 7 : Mini linear Stage tableProduct type 8 : XYZ axis linear guides tableProduct type 9 : motor linear rail table kitProduct type 10 : T-type Sliding tableProduct type 11 : XY axis Sliding tableProduct type 12 : linear guide tableProduct type 13 : linear rail guide tableProduct type 14 : Z-axis sliding tableProduct type 15 : Mini linear rail tableProduct type 16 : T-type Sliding tableProduct type 17 : Mini linear guide tableProduct type 18 : T-type Sliding Table Rail LinearProduct type 19 : Mini T-type Sliding Table

• Customizable Connectivity:Supports customized connecting plates for multi-axis systems, facilitating complex setups.
• Mini Sliding Table|High Load Capacity:Vertical load of 2.5KG, Horizontal load of 5KG, ensuring robust performance for diverse applications.
• Precision Positioning:Repeat positioning accuracy of 0.02mm-0.03mm for precise control in scientific and industrial set.
• High-Speed Operation:Maximum speed of 80mm/s for swift and efficient movement, enhancing productivity in automation tasks.
• Versatile Stroke Options:Available in 50mm to 300mm stroke lengths, catering to various mini linear stage requirements.
