MJ-1-DP Jack Plate 4'' Setback Small Engine Jack Plate for Outboard Motors Up to 35HP (Wooden Mounting Block Included) Manual Add Distance Between Engine and Transom
Product details
| Management number | 224721450 | Release Date | 2026/05/09 | List Price | US$25.00 | Model Number | 224721450 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

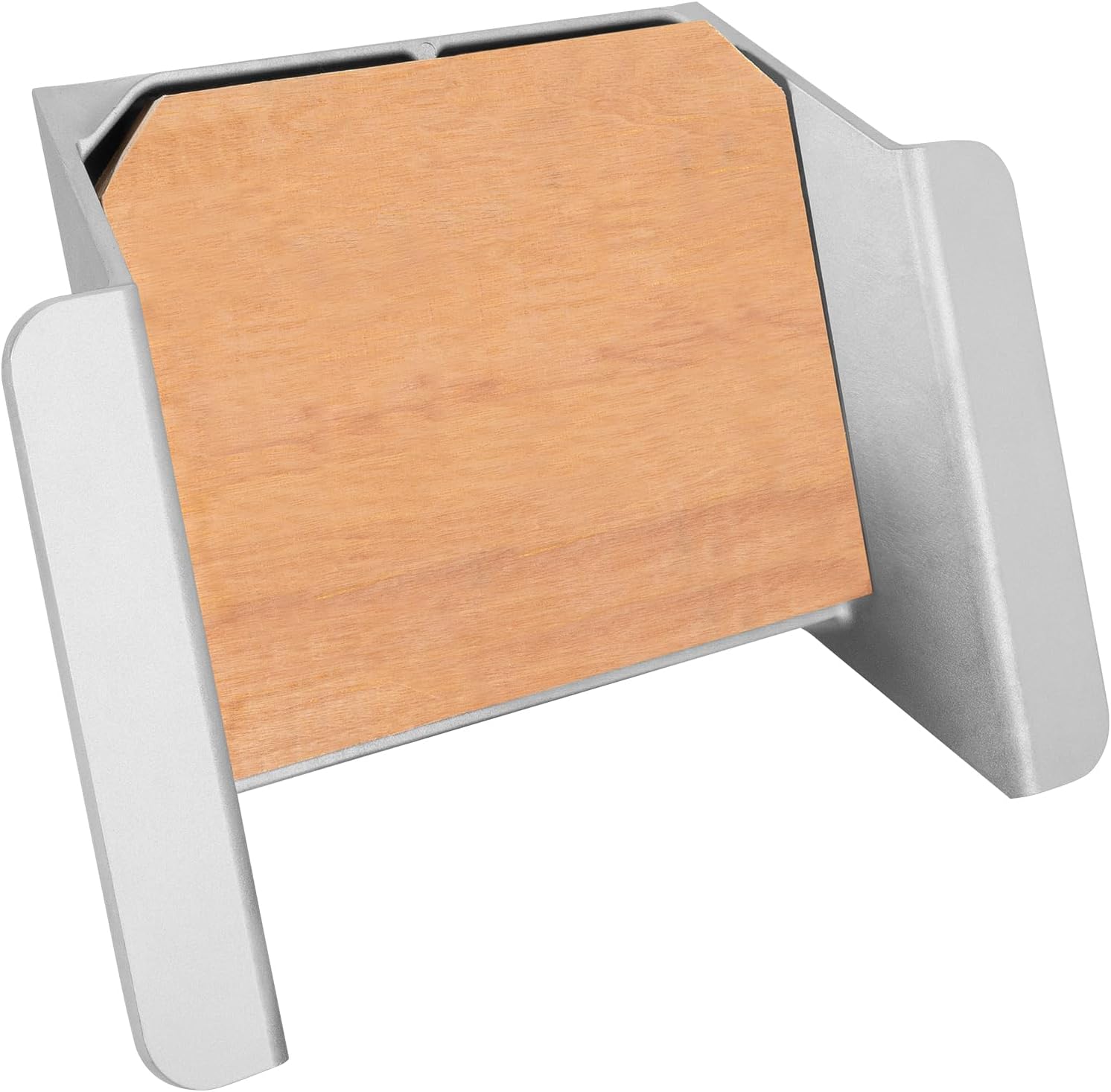

- APPLICATION -- Designed for clamp-on mount outboard motors up to 35 HP. Suitable for skiffs, aluminum boats, and inflatables. This cast aluminum offset type jack plate allows mounting of long shaft motors to shorter shaft transom boats.

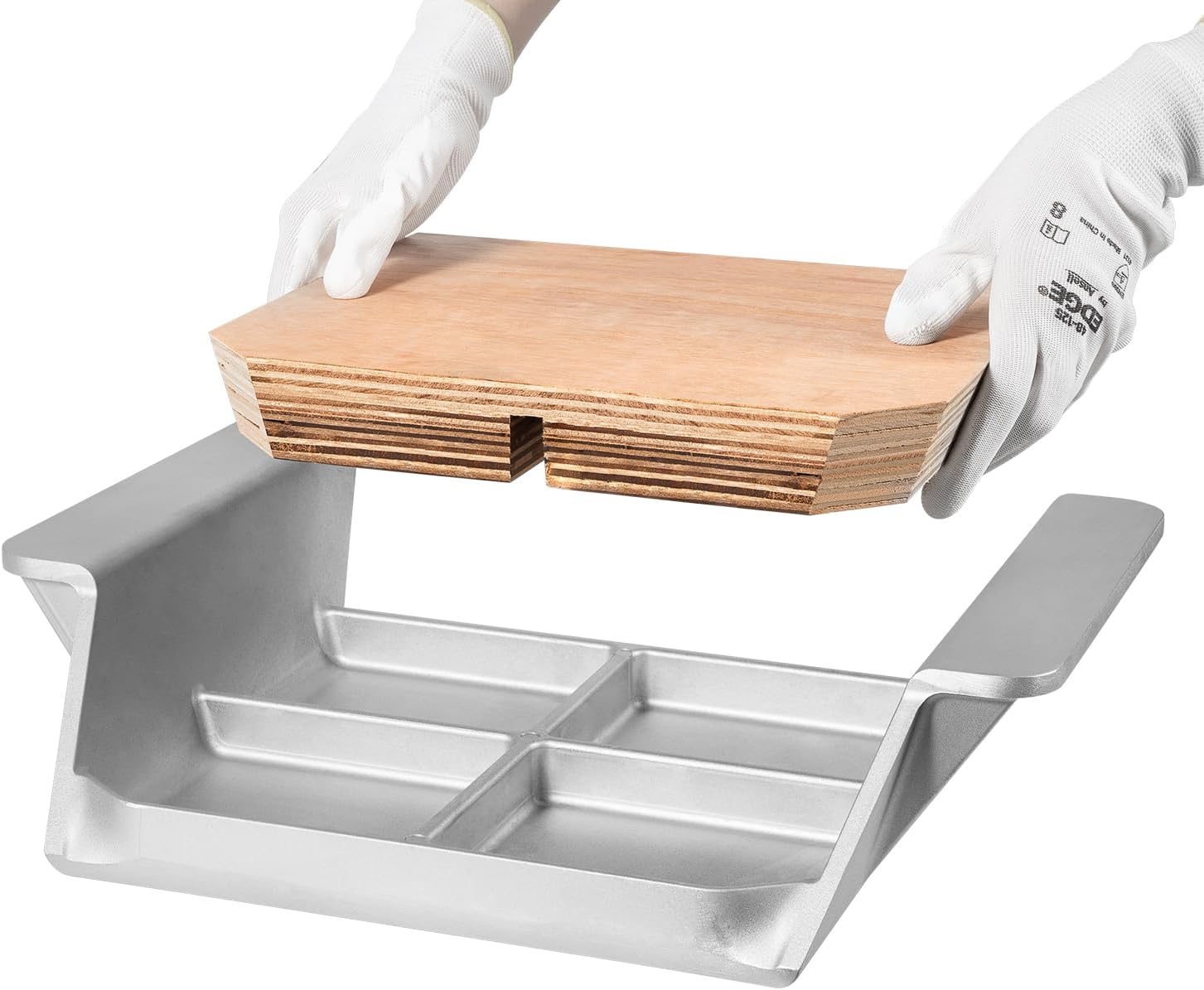

- WOODEN BLOCK INCLUDED -- Same as MJ-1-DP Jack Plate, Wooden Block Model # WOOD0002. Jack plate comes with pre-cut and pre-grooved wood block for a perfect fit. Ensure more firm and reliable installation of the motor.
- FUNCTION -- Extends 4" off transom. Small boat that made for short shaft outboard engine equipped with a long shaft engine which results in not optimal performance and handling. This jack plate is designed to firmly attach to the transom and provides a higher mounting position for the engine.
- BENEFITS -- Improves performance and handling of smaller or lighter boats. Allows long shaft motors mount to shorter shaft transom boats. Making the boat drive faster.
- 4" SETBACK -- The jack plate extends 4" off transom. Engine mounting surface is 11-1/2" wide x 10" high, and features 4" Setback and 3" Vertical Offset. The overall width of transom mounting flanges is 17". Max weight capacity: 150 lbs. Max Horsepower: 35 HP.
- EASY INSTALLATION -- Position of the holes on the jack plates are consistent and accurately marked for easy installation. With a simple setup and drill process, you will have your jack plate installed in no time.
- TOP QUALITY -- The jack plate bracket is well manufactured from Cast Aluminum, and the Wooden Mounting Block is quality Marine Grade Transom Block. Parts are built with strict quality control standards and for long lasting usage.
- SATISFACTION GUARANTEE -- If you are not satisfied with Camoo products, simply return it for a full-refund in 30 days. Guarantee with 12 months warranty. No worry about buying!
| ASIN | B0C23HF5FQ |
|---|---|
| Color | Silver |
| Brand Name | Camoo |
| Style Name | Clamp-On Style |
| Unit Count | 1.0 Count |
| Item Weight | 5.24 Kilograms |
| Manufacturer | Camoo |
| Model Number | MJ-1-DP |
| Load Capacity | 1.5E+2 Pounds |
| Material Type | Cast Aluminum, Marine Grade Transom Block |
| Item Type Name | Small Engine Jack Plate |
| Minimum Height | 4 Inches |
| Item Dimensions | 16.61 x 12.79 x 4 inches |

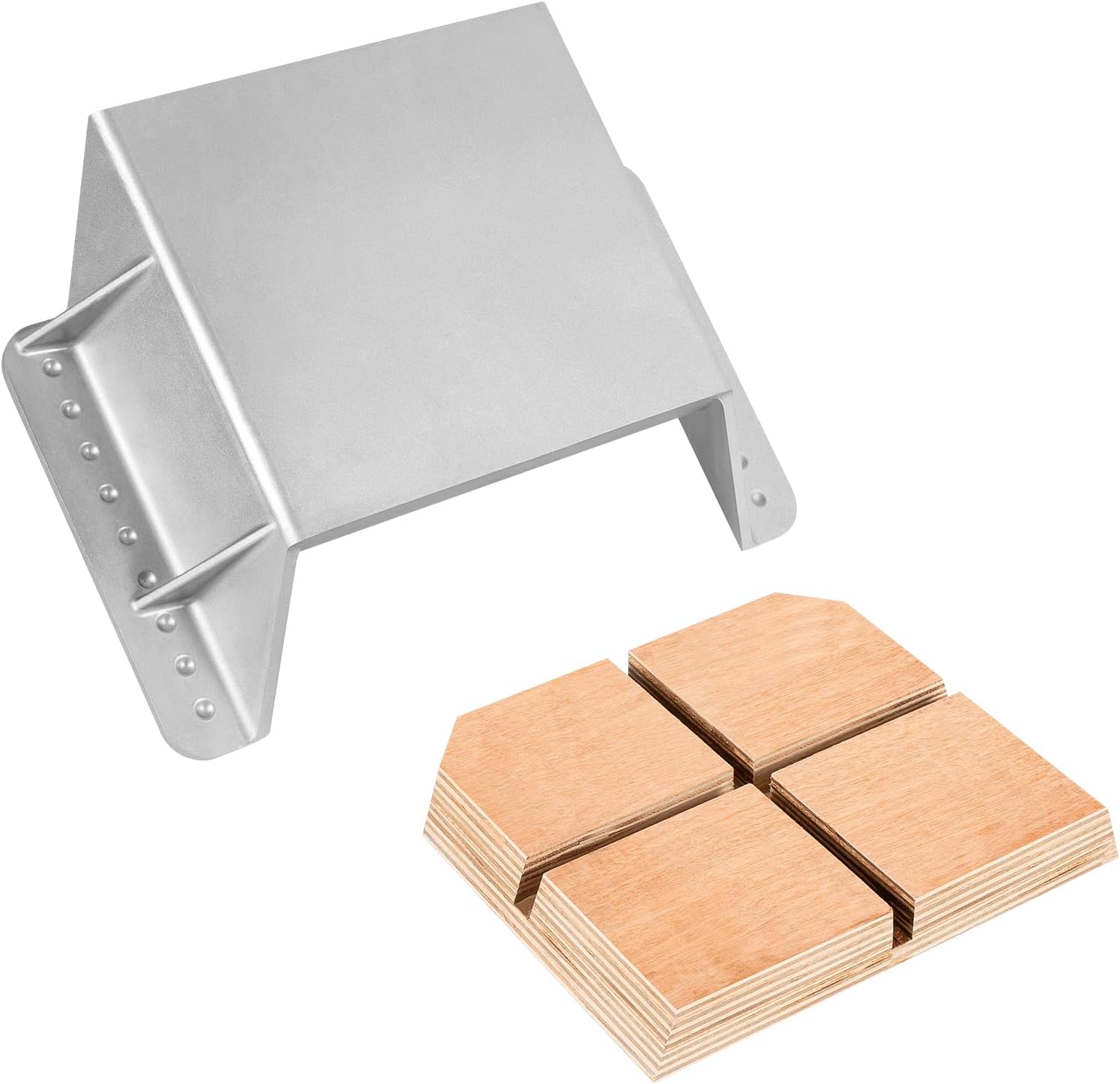

| Included Components | 1 X Cast Aluminum Jack Plate (Replace# MJ-1-DP), 1 X Marine Grade Transom Wooden Block (Replace# WOOD0002) |
| Maximum Lifting Height | 4 Inches |
| Manufacturer Part Number | CE-MJ-1-DP |
| OEM Equivalent Part Number | MJ-1-DP |
| Compatible with Vehicle Type | Skiffs, Aluminum Boats, Inflatables |
| Manufacturer Warranty Description | 12 months warranty |
